Create attachment with Infor System-Link

Create attachment with Infor System-Link

This workflow component, Create attachment with Infor System-Link is only available when IBM i features are enabled, or InterFormNG2 is installed on an IBMi.



The component creates an attachment which contents is the current payload of the workflow, so you need to prepare the payload first. If you e.g. want to use a PDF file, then you first should e.g. insert the workflow component, Create PDF document to merge an input xml (or spooled file) into a PDF in the payload.





A prerequisite for this component is the component: Infor System-Link request.

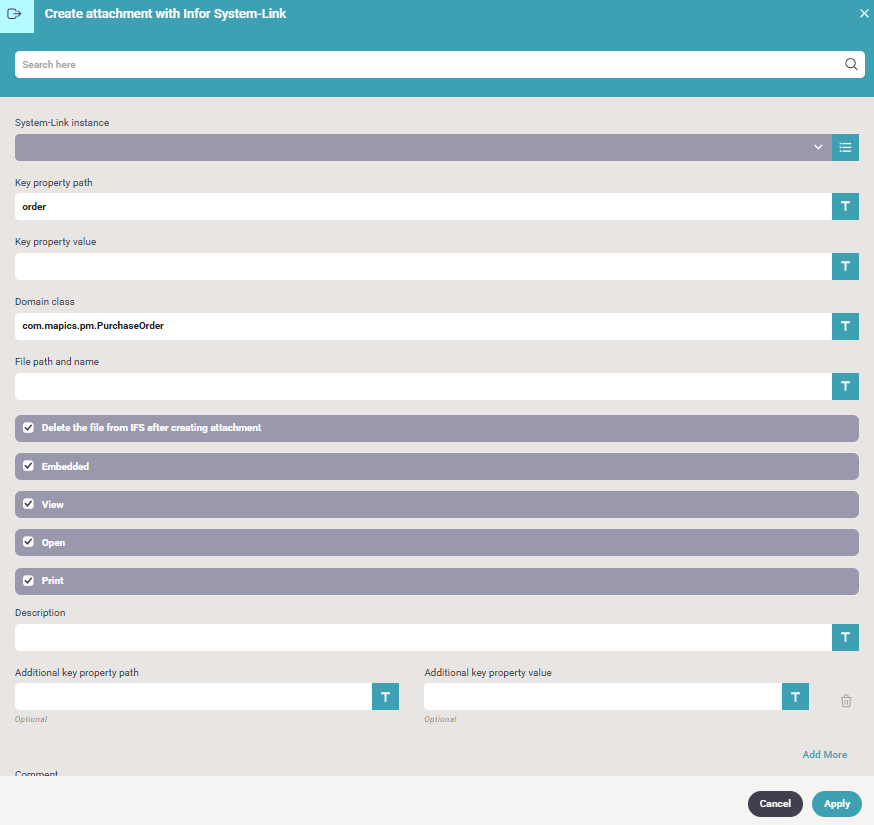

The component has these parameters:



NG2SystemLinkAttachment0001





System-Link instance

This is a reference to a System-Link configuration as defined in the tenant system settings.



Key property path and Key property value

These are part of the OwningObjectKey in the System-Link request.



Domain class

This is the owning domain class in the System-Link request.



File path and name

The IFS location where the attachment should be stored. This will be the MediaFilePath on the System-Link request.



Delete the file from IFS after creating attachment

If checked, then the above file will be deleted from IFS once the attachment has been created.



Embedded, View, Open, Print

These are domain entity properties in the System-Link request.



Description

Used as fileDescription property on the System-Link request.
