Excel variables
You can use variables in the Excel designer exactly like the variable element in the normal template designer. These variables can be used in any Xpath expression.
You can create a new variable or update the value of a variable in two ways:

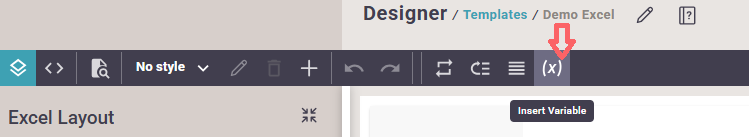

1.You can click the variable icon in the top of the designer:

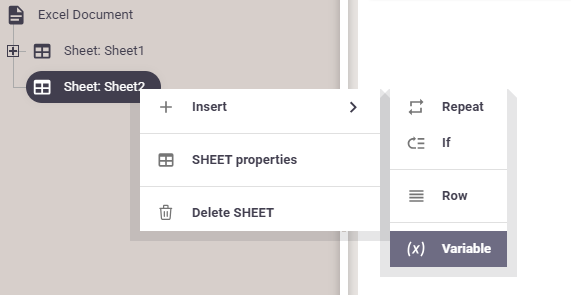

2.You can also insert a variable element, if you right-click on an existing element and here click Insert and Variable:
You can refer to a variable in the following XPath expressions, where the variable name is to be preceded with a $-sign like in any other Xpath function in InterFormNG2.
