From ITPL to intermediate format

From ITPL to intermediate format

This advanced create document workflow component, From ITPL to intermediate format, merges XML in the payload with an InterFormNG (.ITPL) template into the intermediate format.



This can be used for those, that wants to use InterFormNG templates temporarily until the templates has been converted into the InterFormNG2 format (.IFT).



The intermediate format can then later be merged into any of the formats, that can be generated by InterFormNG2.



The other workflow components to consider after the merge into the intermediate format depends on the output, that you want to generate e.g.:



PDF





Print

Use the Print workflow component.

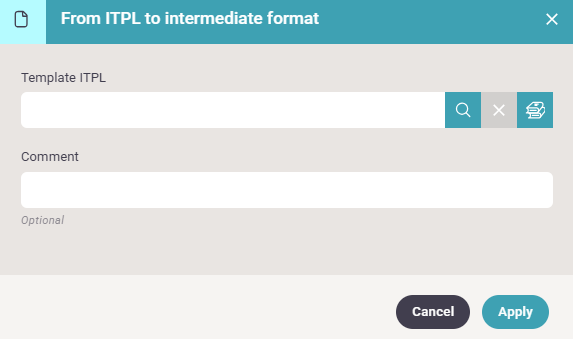

The component has this parameter:



NG2WorkflowFromITPLToIntermediateFormat0001



Template ITPL

As the template you need to state an InterFormNG template. This is a template with the extension, .itpl.
