IBM MQ send message

IBM MQ send message

To send a message to an IBM MQ as part of a workflow, insert a new component at the point in the workflow where you want to send the message. From the "Advanced" components tab select "IBM MQ send message" to send a message to an IBM MQ.

Notes
Note that the message will include all workflow metadata as message headers

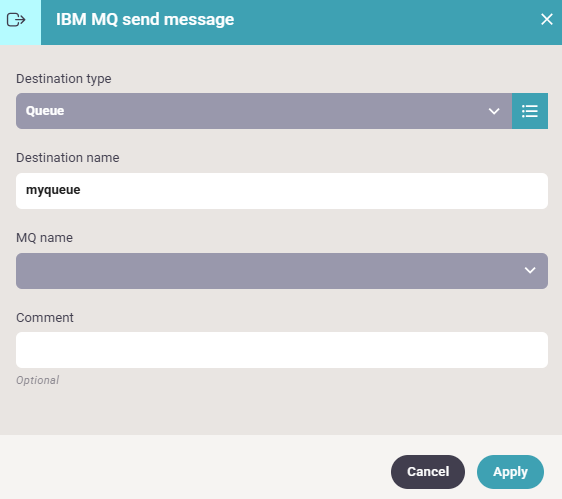

The IBM MQ send message has these parameters:



  1. Destination type
    As "destination type" select if you want to send the message to a queue or to a topic.
  2.  Destination name
    As "destination name" enter the name of the queue/topic that should receive the message.
  3.  MQ name
    Select the name of the IBM MQ configuration you want to use. The configuration are defined in settings (see details in Workflow inputs).

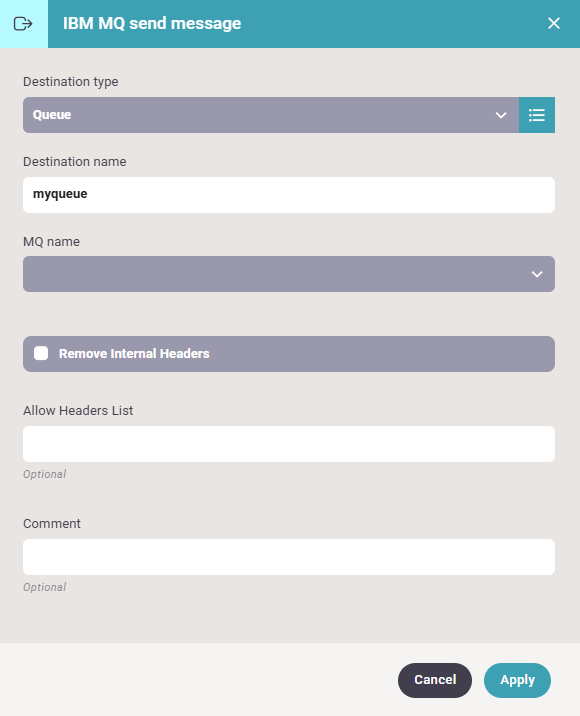

  4. Remove Internal Headers
    If this option is enabled, internal Camel, JMS and InterformNG2 headers are removed before the message is sent.
  5. Allow Headers List
    This is an optional comma-separated list of header names that are allowed to be sent with the message.
Headers removed from the outgoing MQ message are still returned to the workflow, so they remain available for later use in the workflow.
