Interleaved 2 of 5

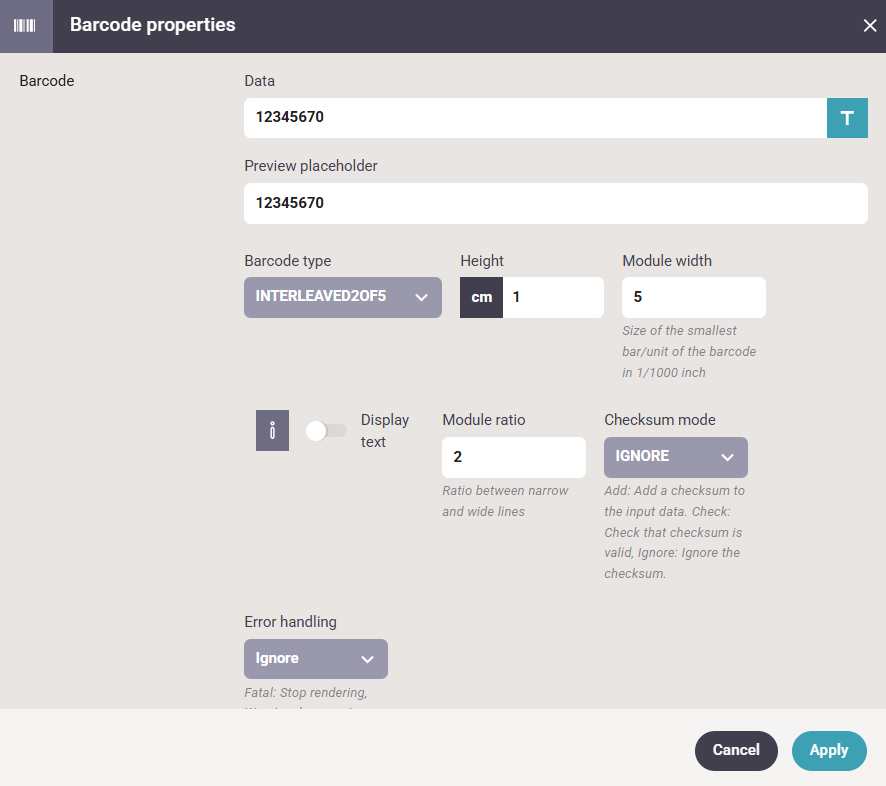

If you want to insert an Interleaved 2 of 5 barcode in a template, then you need to insert a barcode element, where you select Interleaved 2 of 5 as the barcode type:
The parameters are:
(The headers are links to the common description).
The data, that you want to put into the barcode.
Here you can enter a text constant for the data, that you want to use for the barcode in the result view in the designer.
The height of the barcode.
The width of the thin lines of the barcode. This is rounded to up to a whole number of dots in the selected output resolution (DPI). For the mime types, ZPL and Direct protocol the resolution/DPI is set on the printer and for PCL/PDF output the resolution is set on the template element in the template.
The ratio between the wide an and the narrow lines of the barcode. The module ratio is rounded down to the highest possible ratio given the selected output resolution (DPI). Not all ratios are possible as it is not possible to print a part of a dot. For the mime types, ZPL and Direct protocol the resolution/DPI is set on the printer and for PCL/PDF output the resolution is set on the template element in the template.
How to handle the optional checksum.
How InterFormNG2 should react, if the data used cannot be converted into the barcode e.g. because of unsupported characters.
