Postnet

Postnet

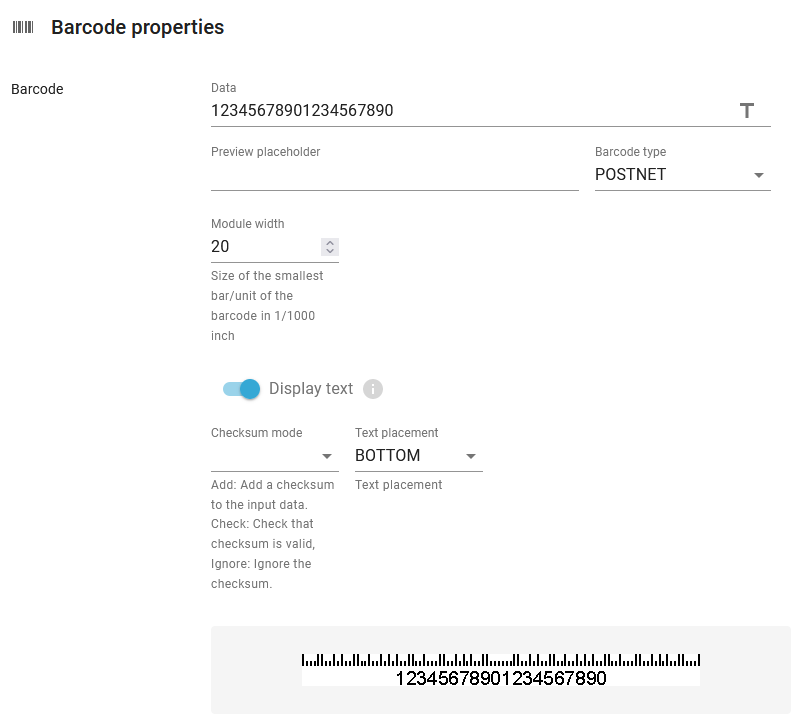

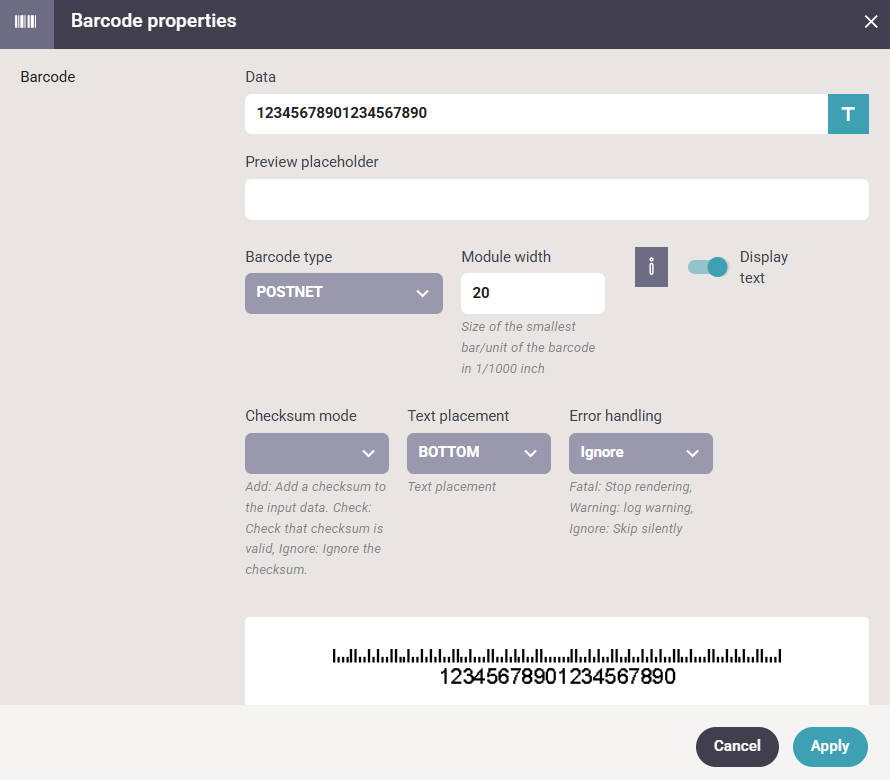

If you want to insert a Postnet barcode in a template, then you need to insert a barcode element, where you select this as the barcode type:



NG2Postnet0001





The parameters are:

(The headers are links to the common description).



Data

The data, that you want to put into the barcode.



Preview placeholder

Here you can enter a text constant for the data, that you want to use for the barcode in the result view in the designer.



Module width

The width of the lines of the barcode. This is rounded to up to a whole number of dots in the selected output resolution (DPI). For the mime types, ZPL and Direct protocol the resolution/DPI is set on the printer and for PCL/PDF output the resolution is set on the template element in the template.



Display text

Enable this to display the data of the barcode also a human readable text.



Checksum mode

How to handle the optional checksum.



Text placement

This has only effect, if the Display text option above is enabled. The possible values are:

BOTTOM: Display the text below the barcode.

TOP: Display the text above the barcode.



Error handling

How InterFormNG2 should react, if the data used cannot be converted into the barcode e.g. because of unsupported characters.
