Retry-repeat workflow component

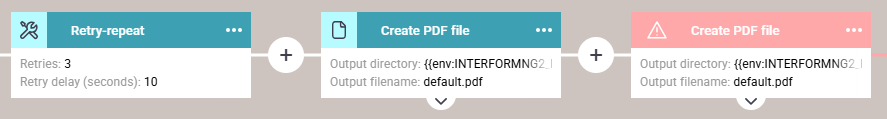

The advanced utilities workflow component, Retry-repeat, can help if you have a workflow component that sometimes fails (for example, due to network connection issues). You can use this to retry a subtree of workflow components until no error occurs, but it will fail when it has tried a specified number of times.

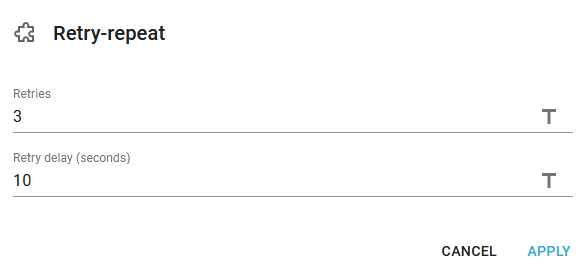

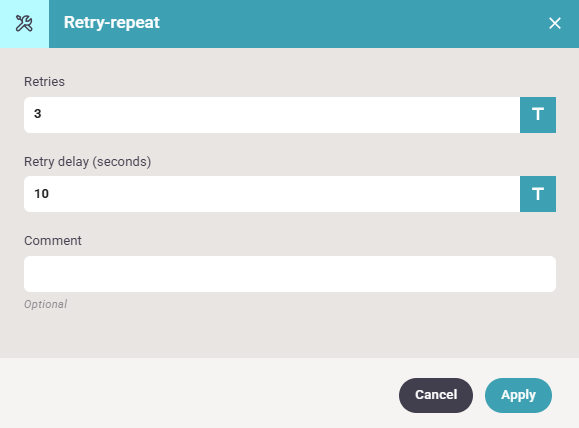

The Retry-repeat component has these parameters:



1. Retries
   The maximum number of retries do execute.
2. Retry delay
   The delay between each retry. The delay is specified as a number of seconds.

Both parameters can of course not only be a constant, but can also be set via an XPath expression.

Note:
The Retries attribute specifies the number of retries beyond the original attempt (i.e., the maximum number of attempts is Retries + 1)

1. The maximum allowed number of retries is 10. This value can be modified by setting the property workflow.retry.limit in application-default.properties.
2. The maximum allowed delay is 60 seconds. This value can be modified by setting the property workflow.retry.maxDelay in application-default.properties.
