Component element

Component element

The component element is selected via this icon:

 Component0001



Components allow you to create and reuse a set of elements across multiple templates, ensuring consistency and efficiency in your business documents. For example, you can define a standard  header or footer that remains uniform across various documents.

The key advantage of using components is that any updates made to them—such as changing the company logo, contact details, or branding elements—will automatically reflect in all associated templates. This saves time and effort while maintaining a professional and consistent appearance across your documents.

By leveraging components, you can streamline document management, enhance brand consistency, and reduce the risk of outdated information appearing in multiple places.
Notes
Components are designed to share reusable parts of a design template across multiple templates. However, they are not intended to contain full page elements. While it may be possible to drag or move a page element  into a component, this is not the recommended practice.
If you experience issues when placing a page element inside a component, the best approach is to move the element out of the component. Instead, consider creating up to three separate components—for the header, body and footer —to maintain flexibility and ensure proper functionality.


The topics in this section are:

  1. How to create a component.
  2. How to include a component in a template.
  3. How to change (and save) a component.
  4. Delete a component from a template
  5. Some component tools.
  6. How to delete a component from the tenant.
  7. How to use a component in header or footer.
  8. List of sample/demo components. InterFormNG2 includes a list of sample/demo components, that you can use as reference or use as a basis to build your own components.

Create a component

To create a new component only a single element can be selected. This single element can e.g. be a container with multiple elements inside.

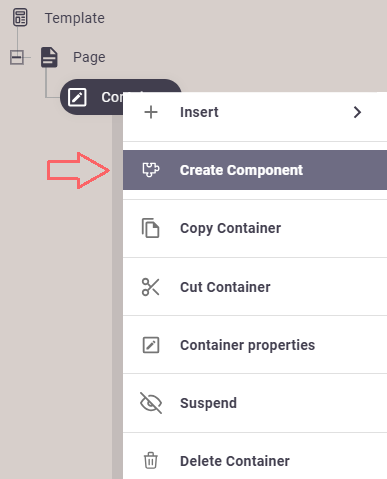

To create the component you right click on the element e.g. container and select 'Create Component':

 NG2CreateComponent0001

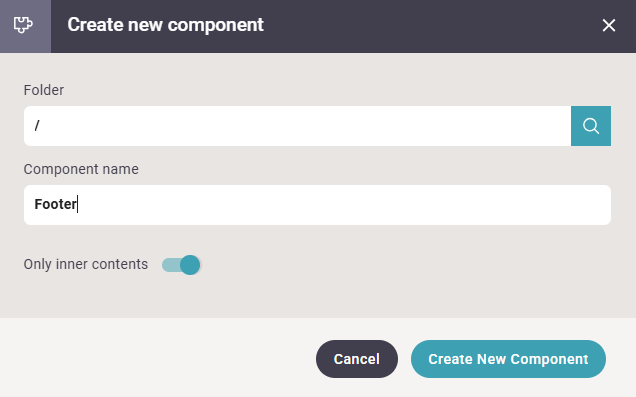

After you have clicked 'Create Component' this window is shown:





The fields are:

Folder

Here you can select a folder or create a new folder for the component with the magnifying glass on the right.



Component name

Type a name for the component to be saved.



Only inner contents

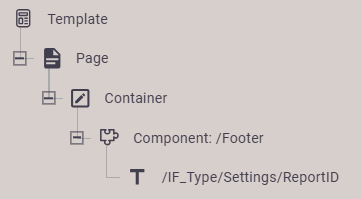

If this is activated (red - marker on the right), then only elements inside the selected container are moved to the component, and the component is referenced inside the container - like this:

 NG2CreateComponent0003

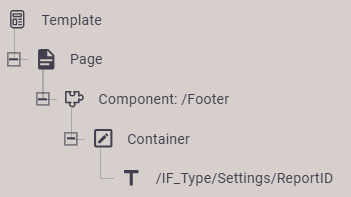

If it deactivated (grey with marker on the left), then the container element itself is moved into the component:

 NG2CreateComponent0004

When you click 'Create new component' the component is saved as the specified name with the extension .icmp in the selected folder. The output of the template remains the same. After this the component is also listed in the Library.



Include a component in a template

You can include a component while editing a template in two ways:

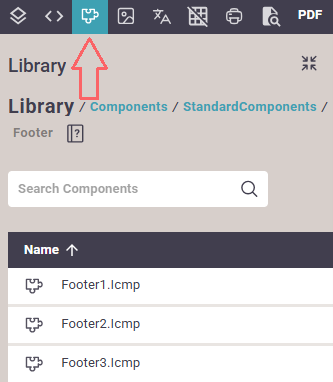

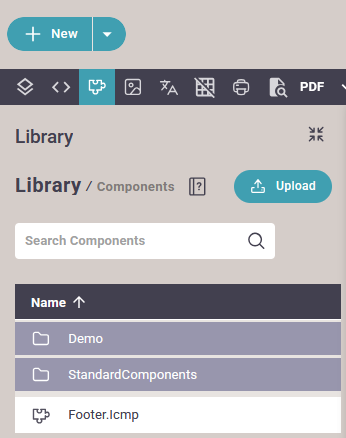

  1.  You can click the component icon on the left:

    NG2CreateComponent0005

    After that you are shown a list of all components and folders containing components. From here you select component a simply drag it to the result view.

    You now click this icon to see the layout (element tree structure of the template):

    NG2Layout0001

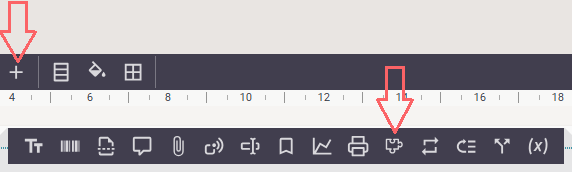

  2.  You can also select a component to be inserted by clicking the '+' in the middle of the top and click the component icon in the second row:

    NG2ComponentInsert0001



    After inserting the component, you can drag (or copy and paste) the reference to the component into another place in the tree structure if needed.


Change a component

To change a component you need to include a reference to the component in a template. When you have done that you simply open the component folder and change the contents. This is almost too easy, so take care not to change a component by accident as this will effect all the other templates, that are using this component.



To avoid accidental changes you are warned in three ways:

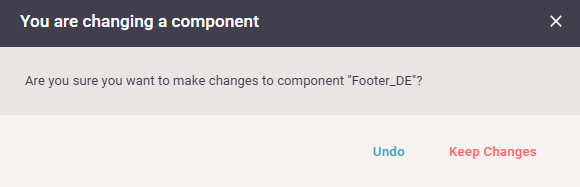

First when you change a component you will see this warning message in the lower left corner:

 NG2ComponentChangeWarning001



Then a red dot is shown to the right of the changed component in the element list:

 NG2ComponentChangeWarning002

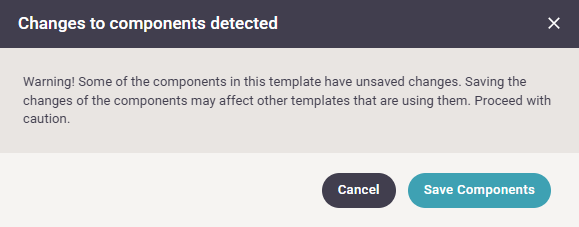

And when you later want to save your changes you are reminded again, if you also changed a component:





If you want to regret the change of the component, then you should select 'CANCEL' on the window above.



Delete a component from a template

If you want to remove a component from a template, then you can delete the reference to the component in two ways:

  1.  You can click on the component and then press the <Delete> key on your keyboard.
  2. You can also right-click on the component in the element list and then click 'Delete component':

    NG2Component0005

    Please notice, that this Delete Component function only deletes the reference to the component, it does not delete the component from the system.

    If you want to delete the component from the system, then you should read this section.

Component tools in the designer

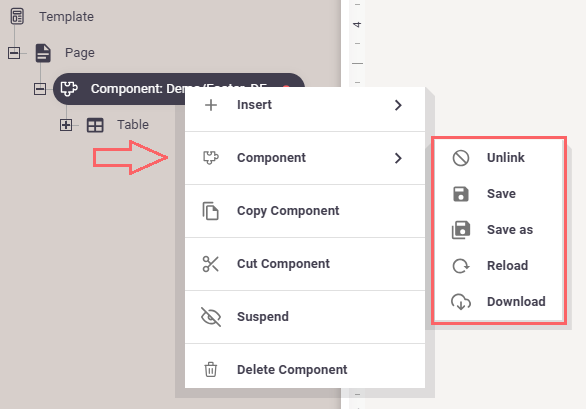

If you right click on a component in the element list, then you will see these options:

 NG2ComponentTools0001



The tools are described below:

Unlink
Save
Save as Copy
Reload
Download
Unlink
Remove the reference to the component. This works like the 'Delete Component' option above. The component is not delete, but the reference (or link) to the component is deleted. If you really want to delete a component, then you need to do that from the Library.
Save
If you have changed a component you can chose to save it now with this option.
Save as Copy
Takes a copy of the component and references the new copy. This can e.g. be used, if you want to change a component, but as other templates should still 'see' the original component, you can instead take a copy and use that for this template. Then you can modify the new component without affecting any other templates.
Reload
Reloads the component. This can e.g. be used if another user has just changed the component, and you want to see the updated version of the component with the current template.
Download
With this option you can save a copy of the component to your local PC e.g. as backup or for copying to another installation.

The use of a common component is covered in this video:
