Error workflow component

Error workflow component

The workflows, that you can setup in InterFormNG2 can be very long and complex and in some cases e.g. for debugging you might want to force an error in the workflow.



Another reason why you might want to force an error, could e.g. be that an input XML file has failed a validation in InterFormNG2.

You can use the advanced utilities error workflow component for that.

When the error component is triggered, then the workflow processing stops. If an on error workflow has been configured, then this other workflow is triggered.

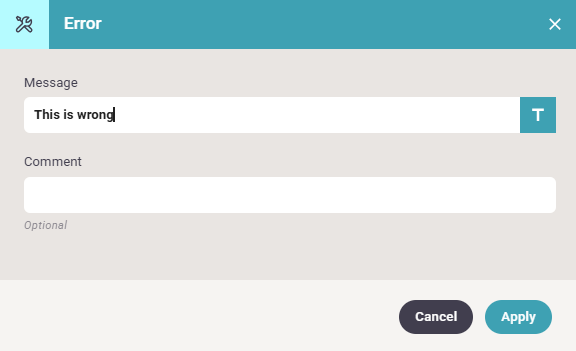

The error workflow component has this parameter:


  1. Message

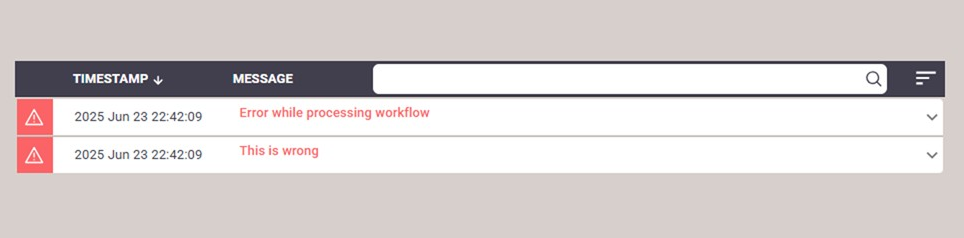

    This message will be sent to the job log as shown below:

Related workflow component is: Error handler.

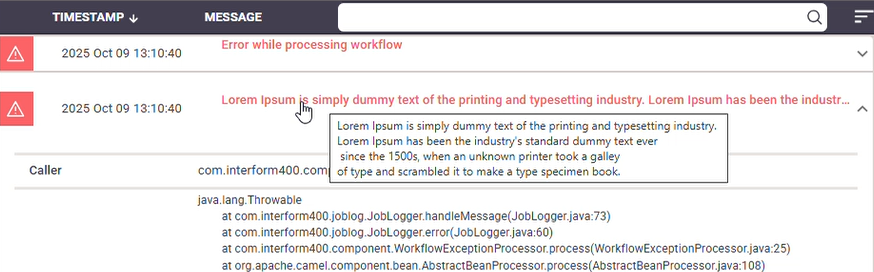

If the Error Message text is too long to be fully displayed in the list, you can hover the mouse pointer over the beginning of the message to see the complete text in a tooltip pop-up window, as shown below.
