You can edit the system performance settings, if you sign on to InterformNG2 as a system administrator.

If you want to change  tenant throttling setup or the  cache settings for InterformNG2, then you can now click the Performance option in the bottom left:

Another performance related setting is the multi-threaded option for the Read from file workflow component.

You can also consider the XML usage report as inspiration to reduce the size of the input XML files.

You can also setup some limitations for the designer and template usage, which can prevent a long running template from causing a slow response on the installation.

​

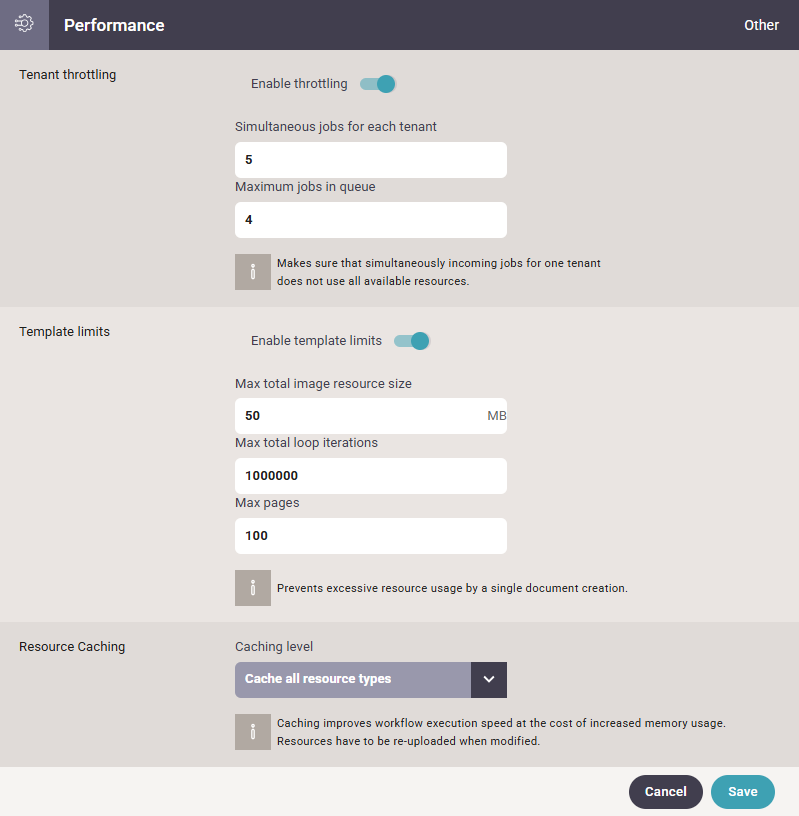

Then you can see and change the throttling and caching:

​

Tenant throttling

In a multi-tenant setup you can limit each tenant to prevent a busy tenant (that is processing many files in parallel) from taking up too much of the system CPU. If you want to limit the tenants, then you can enable the Throttling option as shown above and limit the number of simultaneous jobs for each thread.

Template limits

If you want to ensure, that a long running (or even looping) template does not slow down the processing of the templates, then you can activate this option to setup a limit to how large an output, that can be generated by a tenant.

The parameters are:

1. Max total image resource size
   This is the maximum size of all image in a single document.
2. Max total loop iterations
   The maximal number of loop accepted within a single template.
3. Max pages
   The maximum number of pages, that you allow a single template to generate.

Resource caching

If you want to change cache settings for InterformNG2, then you can now click the Performance option in the bottom left of the system settings and then Resource Caching:

Possible caching levels are:

1. Cache all resource types
   This is the standard, default and recommended setting. With this InterformNG2 will perform as fast and efficient as possible. The downside is, that if you want to change any of the resources stored in the Library, then you need to upload them again via the web interface of the Library. This can be annoying, if you are testing a lot, so in such scenarios it can make sense to reduce caching.
2. Only cache fonts
   Caching of fonts is highly recommended as the performance is highly impacted, if fonts are not cached, so if you want to disable caching in order to dynamically change resources in the Library folders, then you should normally use this option instead of caching all resource types.
3. Disable caching
   This setting is normally not recommended as performance will be reduced by this setting. If you select this, then no resources are cached in the workflow including fonts.

Settings with performance impact

Activate printer queue or time out for printers connected via socket print

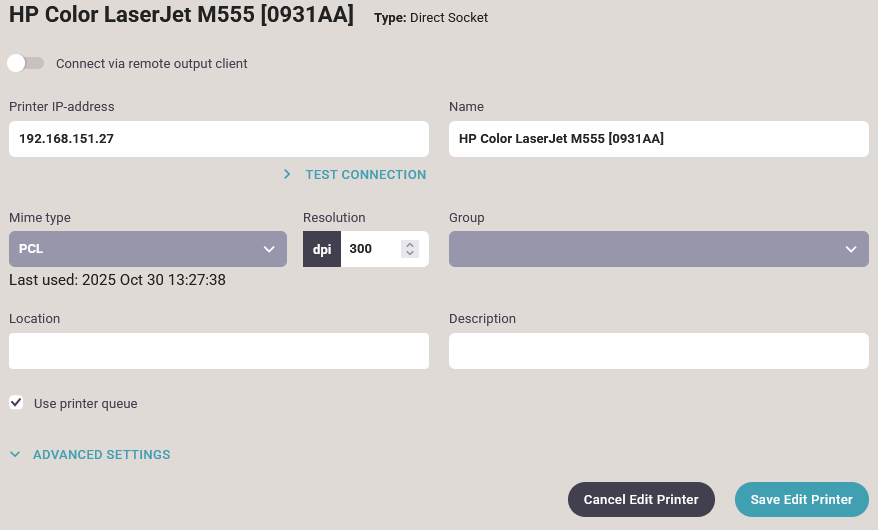

When you print from InterformNG2 via socket print e.g. via printer setup like below:

Then you should consider to either activate the printer queue option or setup a timeout value to ensure, that InterformNG2 does not wait for too long for a response from a printer which might be offline. This is covered in the section, Printer connection options.

Avoid using the File conflict resolution option: Append version

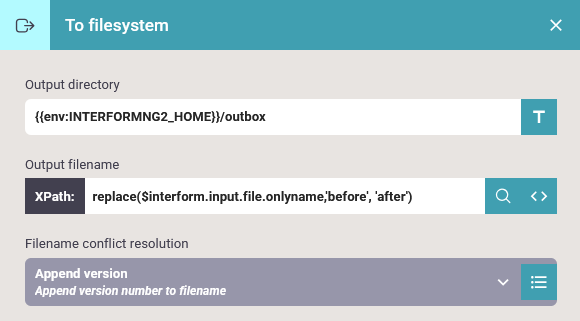

When you save the payload in InterformNG2 to the file system, then you can setup the File conflict resolution to be Append version like below:

This is however in general a bad idea if you generate a lot of these files. If you e.g. just setup InterformNG2 to use a static name with this option, then the number of retries will increase over time. That will have a performance impact as InterformNG2 will try to save the file multiple times before it find a vacant file name. Possible alternatives are listed in the section, To filesystem.

Examples of workflow components, where this might be relevant are:

Create PDF file

To filesystem

To dynamic windows share

To Windows share

To FTP
