Revision log

Revision log

You might want to store a description of the changes, when you save a changed template.

You can use the revision log to store such information.

With the revision log you can:

1.Save a description of the change in the revision log on the template.

2.View the revision log to view a description of the previous changes to a template.

The revision log does not store the complete, old version of a template. For that you might consider github or similar.

Save a change in revision log

When you save a changed template in the designer, then you can choose to save with revision as below:



NG2RevisionLog0001

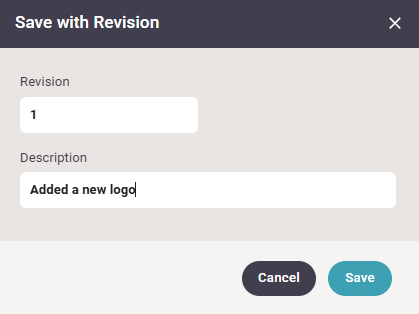

If you select Save with revision as marked above, then you can type in a description of the change in the pop up window:



NG2TemplateSave0005



The revision number automatically increase for each revision saved.

The revision log can be displayed in the designer.

View the revision log

If you have chosen to save descriptions of template changes into the revision log, then you might want to display the contents.

You can see the revision log in your designer in two manners:



1. Via the template revision log on the top:

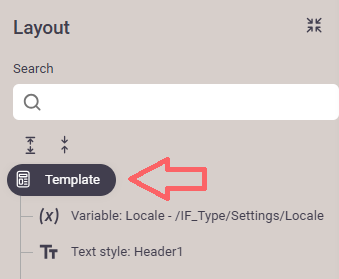

If you left click the template element on the left:

NG2RevisionLog0002

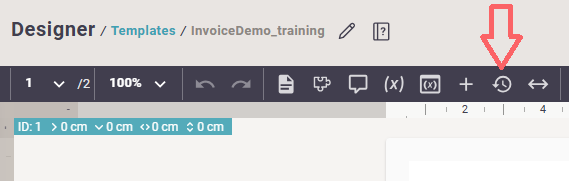

- then you can click the special revision log icon on the top:

NG2RevisionLog0003



2. Right click on the template element:

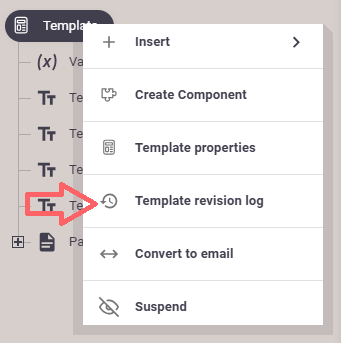

If you right click on the template element:



NG2RevisionLog0002

Then you can select the template revision log here:

NG2RevisionLog0004

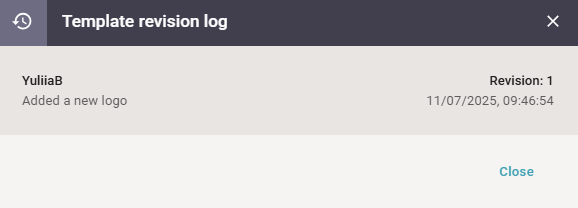

The revision log looks like this:



NG2RevisionLog0005



Here you can see each entry with the description of the change, the user that did the change and the time stamp of the change.
