Spooled files in the designer
You can process spooled files in InterFormNG2, if you have installed InterFormNG2 on the IBM i platform.
The spooled file actions related to the designer are:
- How to load a spooled file in the designer.
- How to map spooled file data in the designer.
- How to use attributes of the input spooled files
- How to map spooled file data from a specific page.
- How to map spooled file data from current page.
- How to reproduce input spooled file as output.
- How to iterate across spooled file detail lines.
- How to setup a template to use the page range of an input spooled file.
- Transform a spooled file into XML.
- Convert a spooled file into Excel.
Input
spooled file attributes
As the first thing InterFormNG2 retrieves a lot of spooled file attributes, when a spooled file is processed in the workflow.
Each of the attributes can be referred to in the workflow and in the designer as variables i.e. if you want to verify if the name of the input spooled file is 'QPRINT', then you can compare the variable $interform.input.spooled.splf with 'QPRINT'.

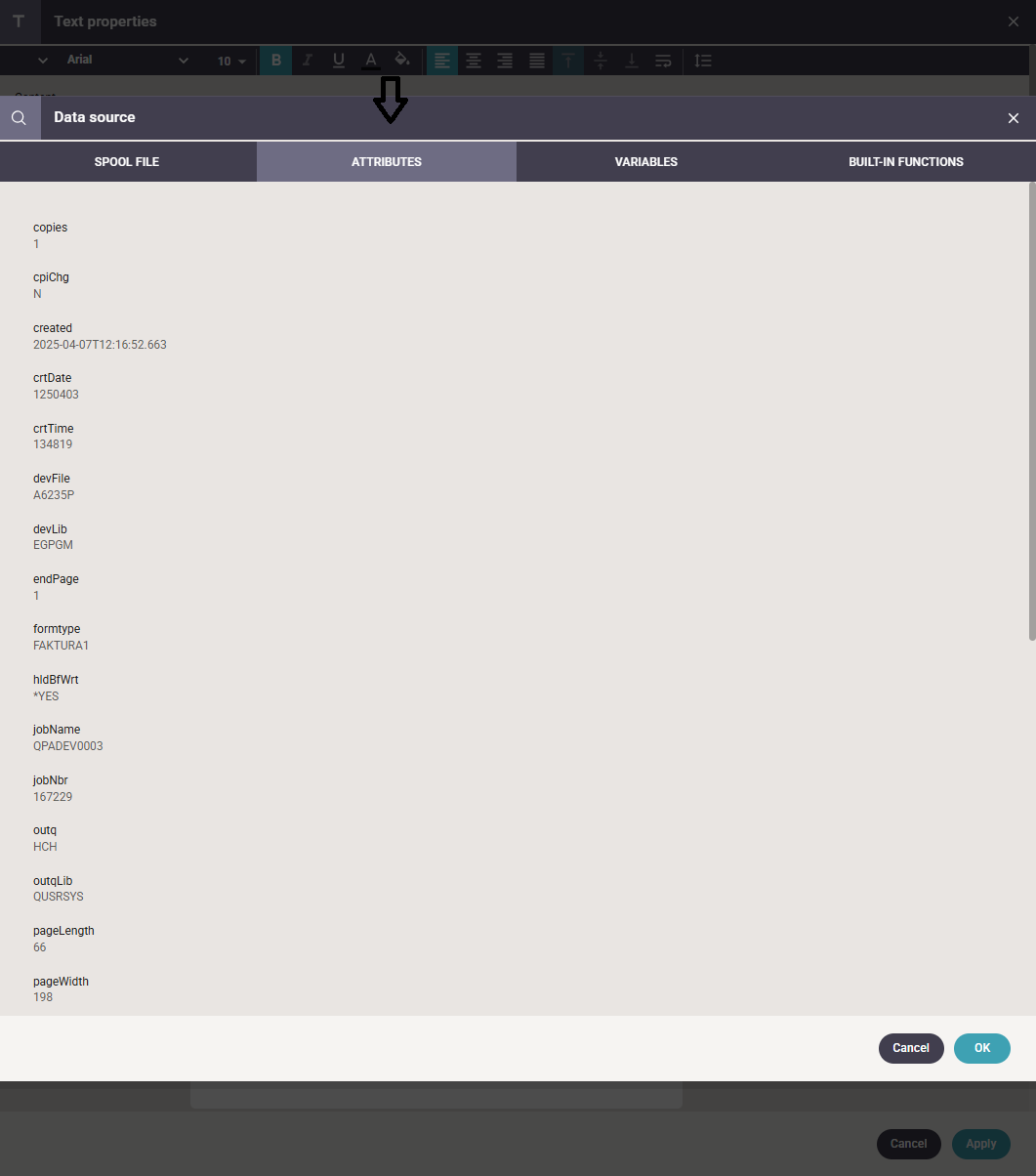

The video shows how the attributes can be used in the designer, but it is actually easier, if you simply select the spooled file attributes from the Attributes tab:
This list can only used to retrieve information from the spooled file - not to assign a new value for a spooled file attribute.
The attributes, that are retrieved are:
interform.input.spooled.system | The system on which the spooled file was created. |
interform.input.spooled.created | The time stamp of when the spooled file was created. |
interform.input.spooled.jobName | The name of the job, that created the spooled file. |
interform.input.spooled.user | The user, that created the spooled file. |
interform.input.spooled.jobNbr | The job number of the job (refer to job name above), that created the spooled file. |
interform.input.spooled.splf | The spooled file name. |
interform.input.spooled.splfNbr | The spooled file number |
interform.input.spooled.outq | The output queue on which the spooled file is placed. |
interform.input.spooled.outqLib | The library of the output queue in which the spooled file is placed. |
interform.input.spooled.formtype | The form type of the input spooled file. |
interform.input.spooled.pgm | The program, that created the spooled file. |
interform.input.spooled.pgmLib | The library of the program, that created the spooled file. |
interform.input.spooled.devFile | The device file (or printer file), that was used, when the spooled file was created. |
interform.input.spooled.devLib | The library of the device file (or printer file), that was used, when the spooled file was created. |
interform.input.spooled.userData | The user data field of the input spooled file. |
interform.input.spooled.usrDefData | This contains the user defined data attribute of the input spooled file. |
interform.input.spooled.copies | The copies attribute of the input spooled file. |
interform.input.spooled.toOutq | If the spooled file arrived via Spool2XML, then this is the output queue, where the merged print is to be printed. |
interform.input.spooled.toOutqlib | The library used for interform.input.spooled.toOutq above. |
interform.input.spooled.sourceDrawer | The drawer selection in the input spooled file. |
interform.input.spooled.startPage | The first page to be printed. This is normally 1 and was set in the pagerange attribute. |
interform.input.spooled.endPage | The last page to be printed. This is normally *END and was set in the pagerange attribute. |
interform.input.spooled.saveAfterWritten | The save attribute of the input spooled file. |
Load aspooled file in the designer
If you want to load a spooled file in the designer, then you first need to load the spooled file in the library.
Now you can load the spooled file in the designer as described here.
You can identify loaded spooled files as the files with the extension .splf.
