Components library

Components library

Components can be used as sub-templates in the designer in the component element. They can contain design elements e.g. a header or a footer, that you want to use for many templates in the designer.



The description of the component element covers most of the functionality.

InterFormNG2 includes a list of sample/demo components, that you can use as reference or use as a basis to build your own components.

How to upload a template component

You can upload a template component in two ways:

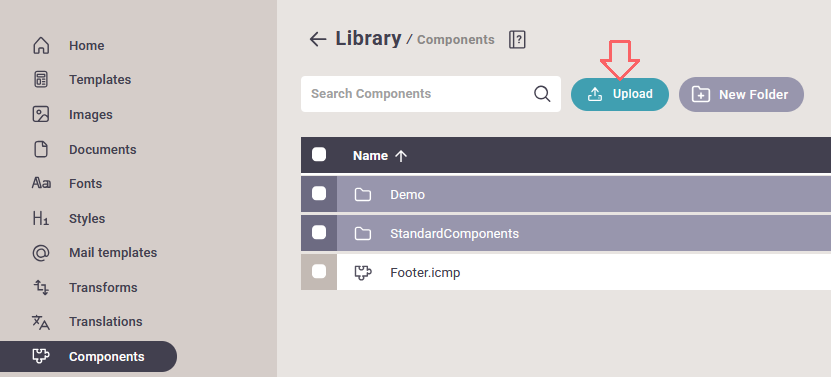

1. Upload from the Library. Here you just the blue Upload icon in the top (after selecting components):

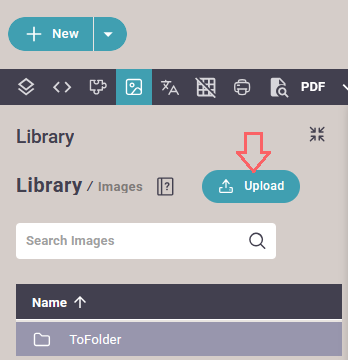

2. Upload from the designer. Here you need to click the leftmost components icon and then the Upload icon:


How to delete a template component

When it comes to a delete of a template component, then you have two options:

  1. You can delete the reference to a component in a template inside the designer. This does not delete the actual component from the library, but instead it removes the reference to the component in the template.
  2. You can also delete the component from the library, if you really want to remove the component from the system. This is covered below:

To delete a component you select the component folder or tile in the Library and then you see a list of the components:

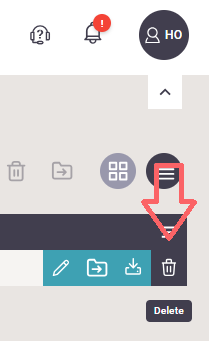

To delete the component from the system you place the mouse over the component and then click the garbage can to the very right of the component line:

Sample/demo components :

InterFormNG2 comes with multiple sample/demo components, that you can use as inspiration, if you want to build your own.



InterformNG2 comes with these components:

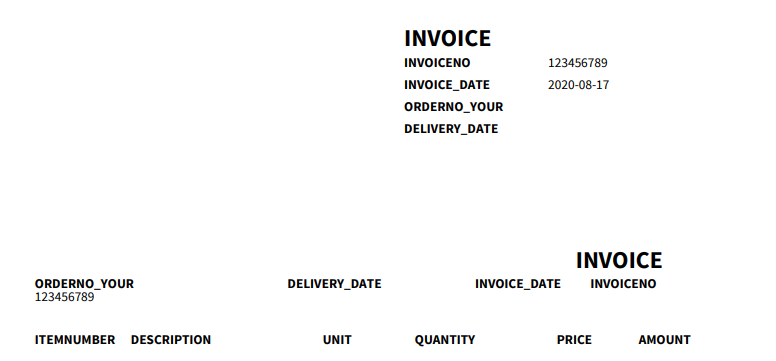

In the folder /StandardComponents/Header/ you can find these headers:

  1. Header1.icmp


  2. Header2.icmp


  3. Header3.icmp

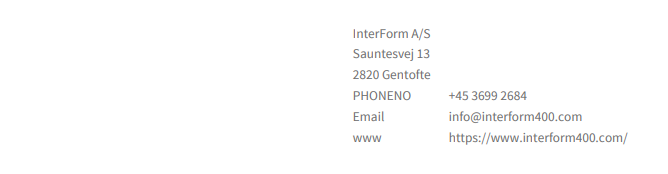

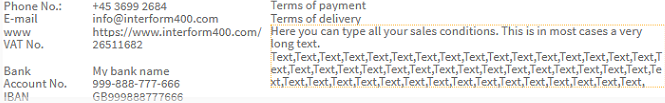

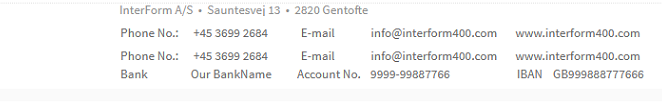

In the folder /StandardComponents/Footer/ you find these footers:

  1. Footer1.icmp


  2. Footer2.icmp


  3. Footer3.icmp

In the root of the components you can also find the footer.icmp.
