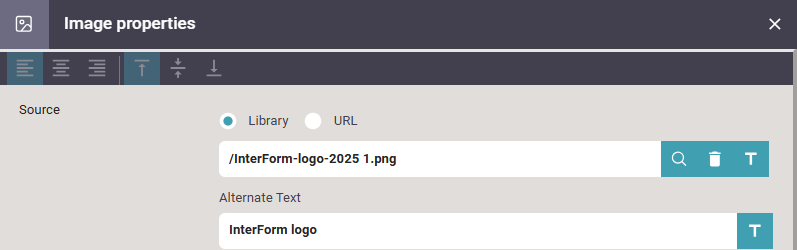

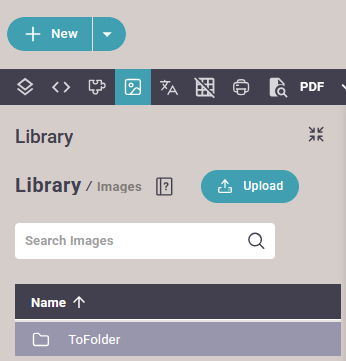

An image can be inserted in two ways, if you want to insert a fixed image from the library:

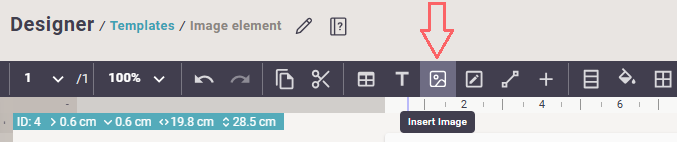

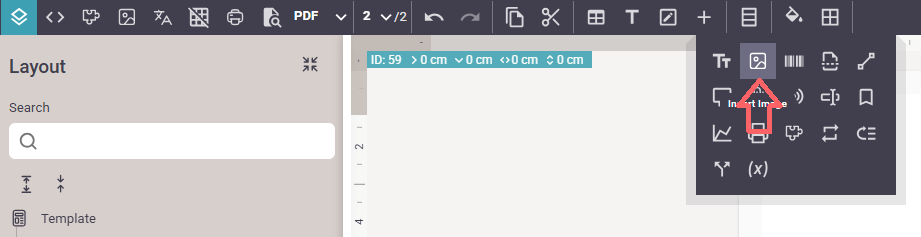

The other option can be used for fixed images and must be used for dynamic images. For this you click on the image icon in the top middle:

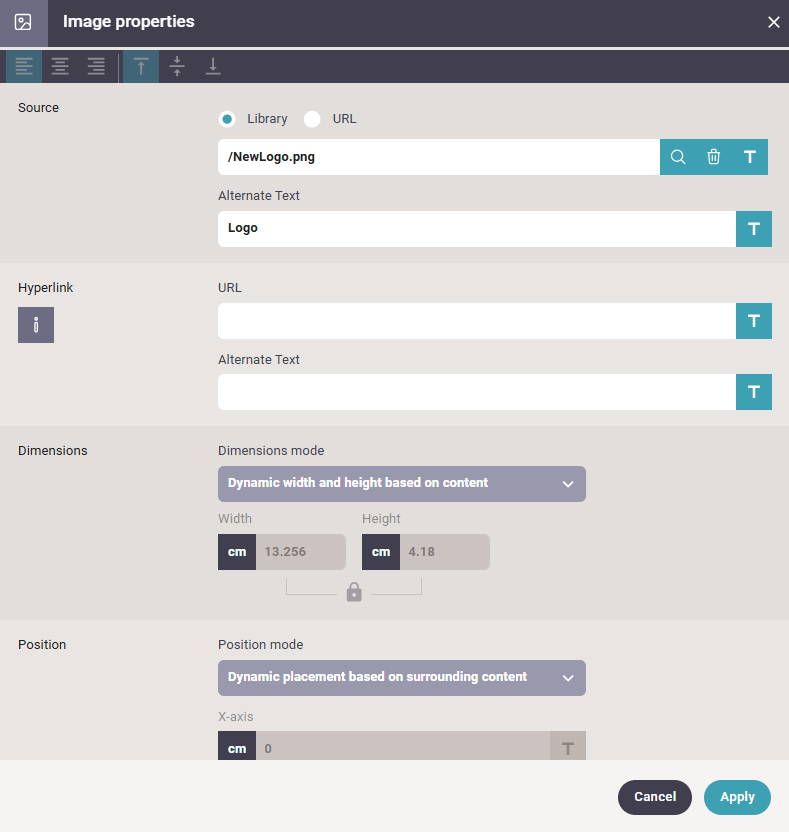

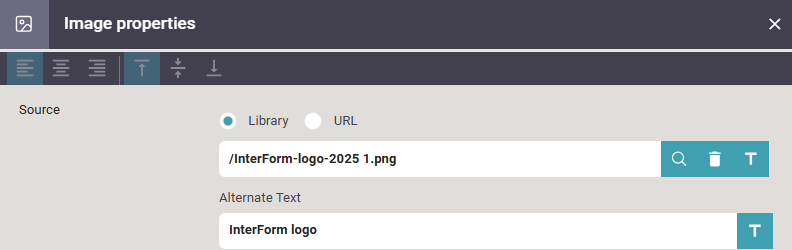

When you click this icon this window will pop up:

(The same window pops up, if you right click on an image and select 'Image properties')

The fields for the image are these:

Source

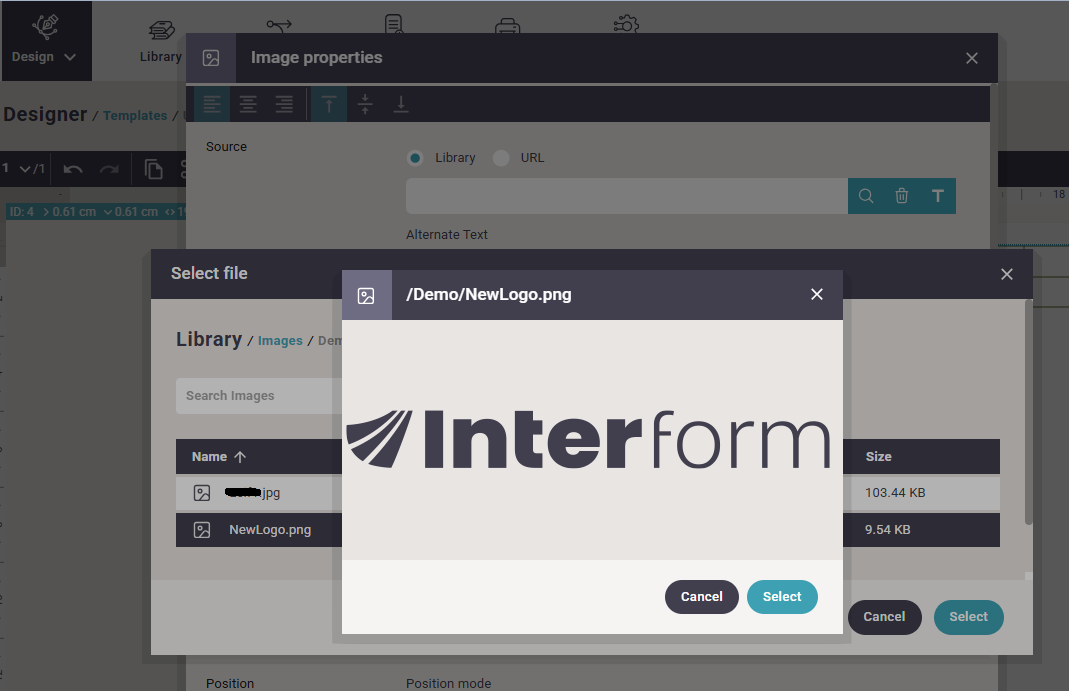

If you select Library, then you can select (with the magnifying glass) between the images stored in the library. These images can also be selected dynamically.

If you select URL, then the URL of the image is to be defined e.g. https://www.interform400.com/templates/interform/images/logotype.png.

If you want to link to a local file, then you can do that with a URL like this:

file:/C:/Users/myuser/Pictures/Myfile.jpg

If you want to refer to an image e.g. in the IFS of an AS400 (from another machine e.g. a Windows PC), then you can use this as the URL in the designer:

file:////<machine ID or IP-address>/apf3812home/Work/Demoimage.JPG

This does require, that the Windows PC has Netserver access to the IFS. You might even need to run the InterFormNG2 under a specific user profile in order to gain access.

If you are running InterFormNG2 locally on the IBM i and you want to include a dynamic image from the local IFS, then you can refer to the image like so:

file:/apf3812home/work/Demoimage.jpg

If there is a space in the path, then you need to replace the spaces with %20. You can do that in this way with an XPath expression:

replace('file:/C:/Users/myuser/Pictures/My File.jpg',' ','%20')

You can use a  dynamic image (which e.g. is found dynamically for each customer) in a mail template to track if a specific image has been downloaded as a way to track if an email has been opened.

The entry line of the source has two different modes:

Either the image is referenced with a Library path or a URL as above. In the Library mode the magnifying glass opens the list of all images in the library. In URL mode the image is referenced via a URL, so any reachable image can be used.

If you click the 'T' on the right, then the mode is changed to expression, which is described below. At the same time double quotes "" are inserted around the text to make it a valid XPath expression.

Placeholder image

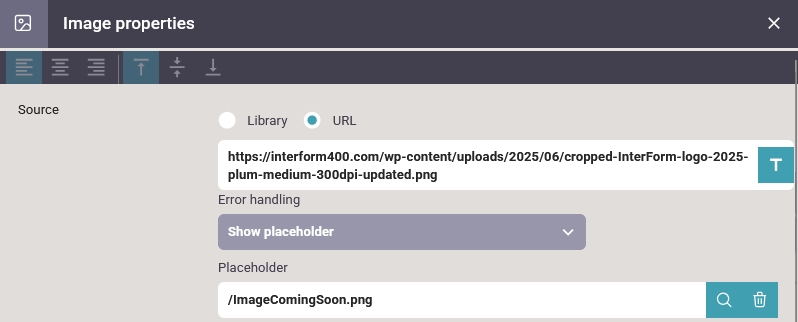

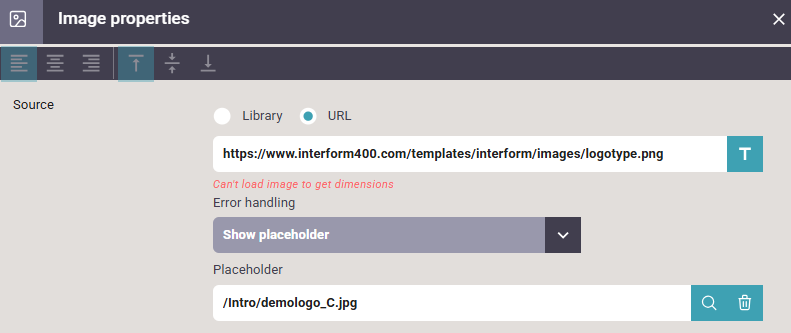

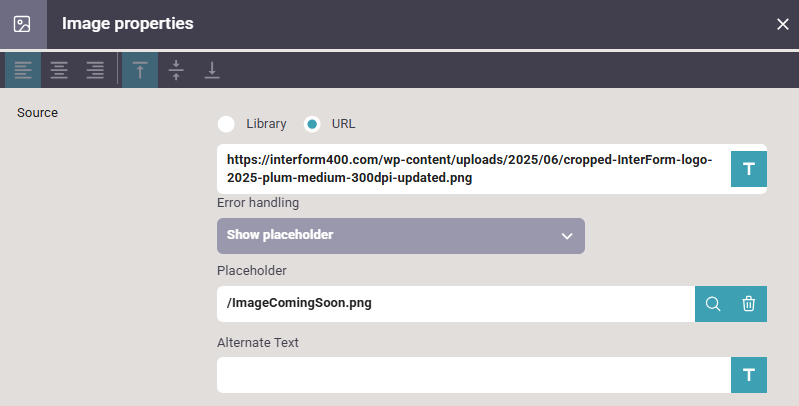

In URL mode you can refer to a placeholder image:

This placeholder image is then used in the designer only in order to replace the linked image in the URL. You can select the placeholder image from the Library via the magnifying glass on the right and remove the reference to a placeholder image, if you click the trashcan icon on the very right.

In expression mode you can build a dynamic reference to the image the magnifying glass opens an Xpath dialog, which can display the contents of the sample XML file, a list of defined variables and a list of all extra built-in Xpath functions. If you click the icon '< >' on the right, then the mode is change into the fixed mode above. If you e.g., use this Xpath expression with the demo xml file:

concat("/Intro/image_",/Root/Document[1]/DocumentNo,".jpg")

 then the dynamic image will be:

/Intro/image_1004.jpg

More information about Xpath is found here.

If you want to include a dynamic image via a parameter on an AS400 command, then you should check out the example here.

Fallback image

If you include a dynamic image e.g. to include an image of a specific product, that is mentioned on a detail line, then you might not have an image of any product, so you need a way to handle missing images. For missing images you can either choose to include a fallback image or choose to not insert any image at all. This is covered in the section, Fallback image.

Base64 image from input XML file

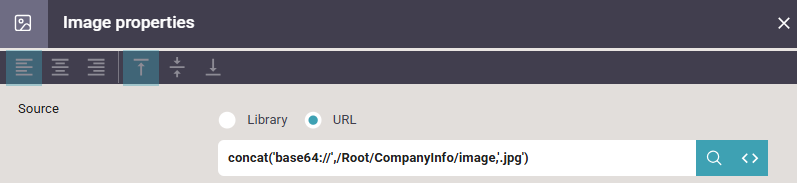

With the functionality mentioned above, you can even extract a base64 image from an input XML file and use that in the output defined in the designer. If you want to do that, then you can define such an image like below:

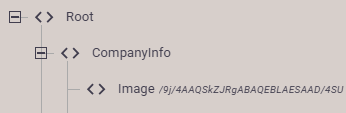

In the example above we define an image with the contents of a URL. The data for the barcode is found in the input XML file, that contains the base64 encoded image in the node /Root/CompanyInfo/image:

In the example above we tell InterFormNG2, that we expect the base64 encoded image to be a jpg image, but if the image is in a different image format, then InterFormNG2 will try to guess the right image format and use that instead.

1. Hyperlink
   Here you can define a link (URL to be opened) for the image, when a PDF file is created. If the user clicks on the image, then this web site /URL is opened.
2. Dimensions
   The size of the image. This can either by dynamic or fixed. If the size is fixed, then you can only set a specific height or width of the image. The other will be calculated to keep the ratio between height and width for the resized image.
3. PositionThe position of the image. The position can be either relative or fixed within the page/container/table in which it is inserted. If the position is fixed, then the rotation can be set freely. The rotation is relative to the page/container/table in which the image is inserted.
4. Margins
5. Margins can be only be inserted, when the image is inserted with relative positioning. If fixed positioning is selected the margin settings are not shown, as they are not used.

If you select URL, then the URL of the image is to be defined e.g. https://www.interform400.com/templates/interform/images/logotype.png.

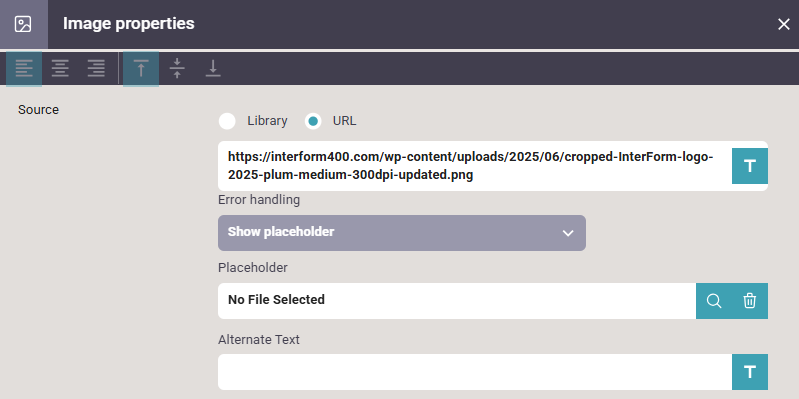

You refer to image like below:

The URL option should be considered if either you want to use a link to an external image like above - or if you want to select dynamically between MANY images - so many images, that installing them in the library is not an option. Here you should consider an XPath expression to set the path - similar to like described for dynamic images.



If possible it is better to refer to installed images as this will improve performance compared to images found via a URL.

Please note: It is possible to use a special URL extension to refer to images stored in a folder on a Windows Share connection.

If you want to link to a local file, then you can do that with a URL like this:

file:/C:/Users/myuser/Pictures/Myfile.jpg

If you want to refer to an image e.g. in the IFS of an AS400 (from another machine e.g. a Windows PC), then you can use this as the URL in the designer:

file:////<machine ID or IP-address>/apf3812home/Work/Demoimage.JPG

This does require, that the Windows PC has Netserver access to the IFS. You might even need to run the InterFormNG2 under a specific user profile in order to gain access.



If you are running InterFormNG2 locally on the IBM i and you want to include a dynamic image from the local IFS, then you can refer to the image like so:

file:/apf3812home/work/Demoimage.jpg

If there is a space in the path, then you need to replace the spaces with %20. You can do that in this way with an XPath expression:

replace('file:/C:/Users/myuser/Pictures/My File.jpg',' ','%20')

You can use a  dynamic image (which e.g. is found dynamically for each customer) in a mail template to track if a specific image has been downloaded as a way to track if an email has been opened.



The entry line of the source has two different modes:

Either the image is referenced with a Library path or a URL as above. In the Library mode the magnifying glass opens the list of all images in the library. In URL mode the image is referenced via a URL, so any reachable image can be used.



If you click the 'T' on the right, then the mode is changed to expression, which is described below. At the same time double quotes "" are inserted around the text to make it a valid XPath expression.

Error handling

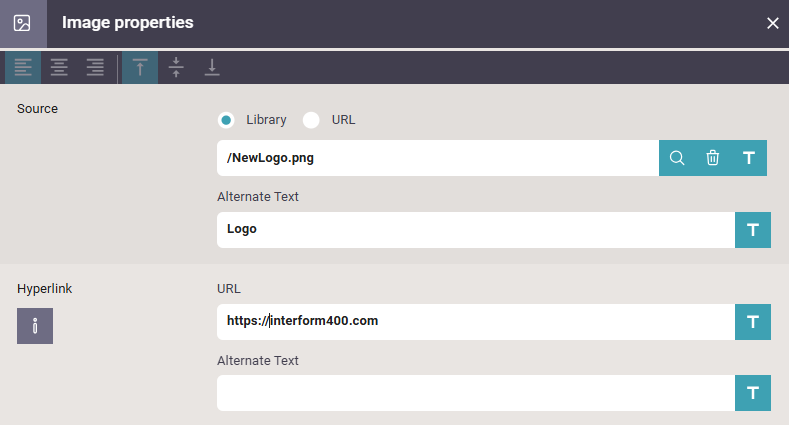

You can assign a hyperlink to an image, so that a user can click the image in HTML and PDF outputs. You can set the hyperlink in the image element like below:

The hyperlink can of course also be set via an Xpath expression - if you click the T icon on the right.

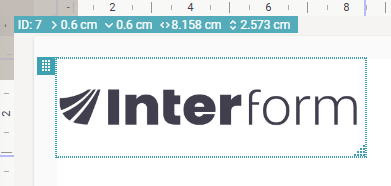

Resizing an image is like resizing any other element:

1.You can drag in the lower right edge of the image to resize it. The ratio between height and width is kept:

2.You can also type in the new size under the Dimensions field of the image:

You can select how you want to define the size via the dimensions mode. Possible values are:

1. Dynamic width and height based on contents
   This means, that the image size depends on the resolution (DPI) of the template and the number of dots/pixels in both directions of the image. If the resolution e.g. is 300 DPI and the image is 300 dots high and 450 dots wide, then the image will be 1 inch high and 1.5 inch wide. The image size is however limited by the container it is inserted in (because there is not room for the full image), if it is inserted with a dynamic position. The ratio between height and width of the image is kept, even if the image is resized because of a limiting container.
2.  One fixed dimension
   If you select this, then you can specify either the width or the height of the image. If you enter one of them, then the other is calculated. If you use this option the original ratio between the height and width of the input image is kept.
3.  Fixed width and fixed height
   Here you state a fixed height and a fixed width of the image. The ratio between the height and width of the image may not be the same as of the input image. You need to calculate appropriate values yourself, if you want to keep this ratio.

1. By rotating the container in which the image is placed.

2. By rotating the image itself as explained below.


Rotations of containers and images are accumulated, if they are placed within each other.

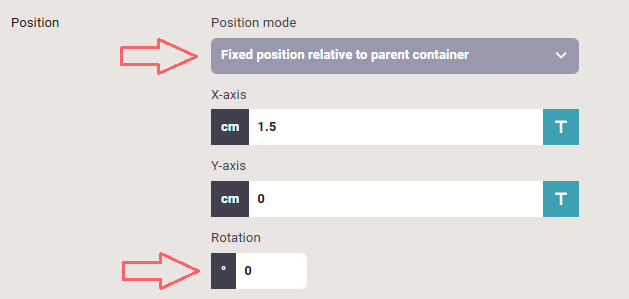

To rotate an image without rotating the container in which the text is placed, you first double click on the image element to view the properties and then change the Position mode to 'Fixed position relative to parent container', then you can change the rotation as marked below.

It is recommended to stick with rotations, that are multiples of 90 i.e. 90,180,270 to ensure that the rotation is supported by the printer.

Please note, that by changing the position mode the subsequent elements that are positioned relative will move upwards.

It is possible to vertically align a fixed positioned image. You can choose to position the image above, centered or below a reference point.

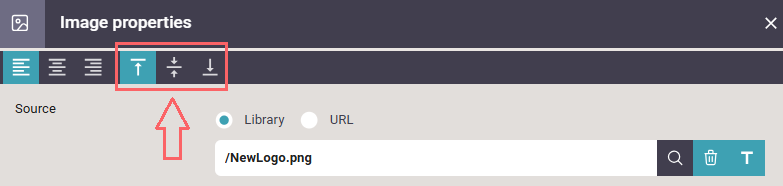

This is setup with these icons, when you edit the properties of the fixed positioned image:

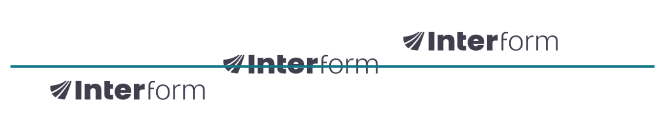

This option is used below. All the images have the same position from the top, but they have a different alignment:

Transparent images are supported in InterFormNG2, but the transparency is only supported for PDF output - not the printed output. The requirement is, that the image itself is transparent (prior to installation in InterFormNG2).
