UPC-E

UPC-E

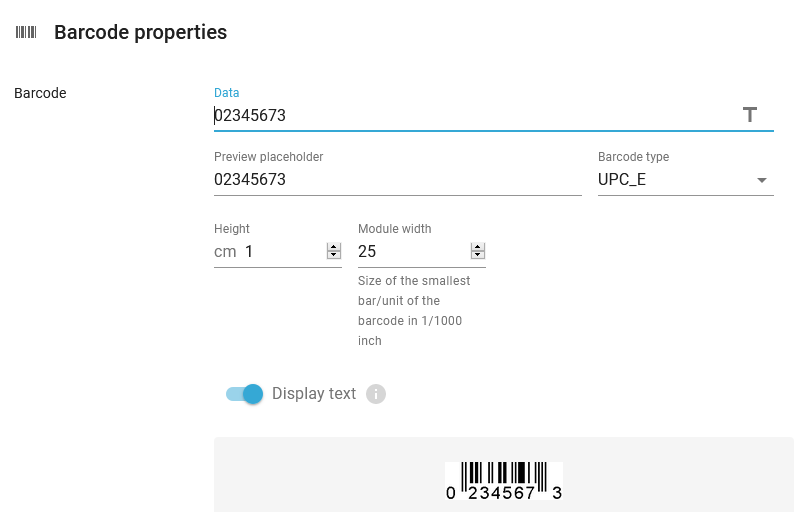

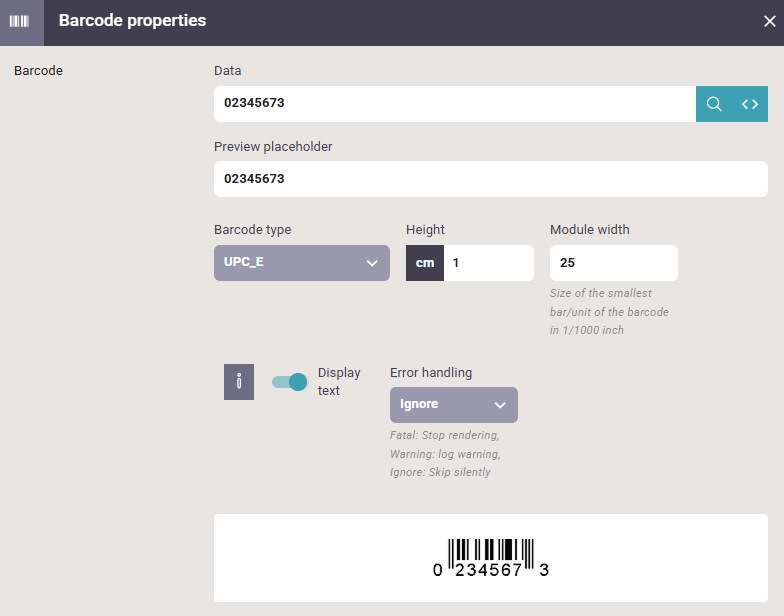

If you want to insert a UPC-E barcode in a template, then you need to insert a barcode element, where you select this as the barcode type:



​

The parameters are:

(The headers are links to the common description).

  1. Data
    The data, that you want to put into the barcode.
  2. Error handling
    How InterFormNG2 should react, if the data used cannot be converted into the barcode e.g. because of unsupported characters.
  3. Preview placeholder
    Here you can enter a text constant for the data, that you want to use for the barcode in the result view in the designer.
  4. Height
    The height of the barcode.
  5. Module width
    The width of the thin lines of the barcode. This is rounded to up to a whole number of dots in the selected output resolution (DPI). For the mime types, ZPL and Direct protocol the resolution/DPI is set on the printer and for PCL/PDF output the resolution is set on the template element in the template.
