The AS400 commands :

InterFormNG2 is shipped with two predefined commands, that are both quite generic as you can freely define exactly what the commands do in the referenced workflows.

The two commands are:

1.IFORMNG2/NG2CMD. This command is the most generic and you can in principle use this for any functionality, that you want.

2.IFORMNG2/NG2CPDFEML. This command is prepared for generating an email with an attached PDF.

Both commands do nothing unless you create a workflow to match them and the parameters, that you have setup.

The most important thing is, that you refer to the path of the workflow in the first parameter of the commands: NG2 endpoint (COMMAND field).

The parameters of the commands are mapped into workflow variables.

... PARM5 to PARM29 are not displayed here.

Examples

A few examples of how you can use the command is included in the sections below:



1.Command call: Dump the variables. This can be used, if you want to debug a command call.

2.Command call: Email. Shows how you can merge a spooled file into a PDF and email as an attachment via a command call.

3.Command call: Email with extra attachment. How you can add an extra attachment and set the extra attachment name.

4.Command call: Create PDF from payload. Create a PDF in the payload and save it to the IFS in the called command.

5.Command call: Create PDF in workflow. Create a PDF in the workflow from a command.

6.Command call: Merge XML into PDF. Merge an input XML file with a template and save the result as a PDF file.

7.Command call: Print. Merge a spooled file with a template and print it via a command on an IBM i.





Troubleshoot the NG2CMD command

Here are some potential issues with a description of how they can be solved:

1.TOOLSSERVER must be running in subsystem IFORMNG2 (C R)

2.

3.







TOOLSSERVER must be running in subsystem IFORMNG2 (C R)

If you see this error message, when you call the command, IFORMNG2/NG2CMD, then you should ensure, that the TOOLSHED2 jobs are running in the IFORMNG2 subsystem. You can e.g. see that via the command WRKACTJOB SBS(IFORMNG2) or via IFORMNG2/IFORMNG2 followed by option:12. Work with IFORMNG2 subsystem.



Then you should see this:



Work with Active Jobs                     PMK250                                                           27/06/24  10:09:49 CEST  CPU %:    67.4     Elapsed time:   00:11:07     Active jobs:   313                                                                                             Type options, press Enter.                                                        2=Change   3=Hold   4=End   5=Work with   6=Release   7=Display message         8=Work with spooled files   13=Disconnect ...                                                     Current                                                     Opt  Subsystem/Job  User        Type  CPU %  Function        Status                  IFORMNG2       QSYS        SBS      .0                   DEQW                     IFORMNG2     IFORMNG2    BCH      .0  PGM-NGQ500C      DEQW                     NG2CLEAN     IFORMNG2    BCH      .0  DLY-60           DLYW                     NG2SERVER    IFORMNG2    ASJ      .0  PGM-STRSVRC      TIMA                     QP0ZSPWP     IFORMNG2    BCI      .0  PGM-QZSHCHLD     EVTW                     QP0ZSPWP     IFORMNG2    BCI    62.5  JVM-Properties   THDW                     QZSHSH       IFORMNG2    BCI      .0  PGM-QZSHSH       EVTW                     TOOLSHED2    IFORMNG2    BCH      .0  PGM-STRTOOLSS    TIMW                     TOOLSHED2    IFORMNG2    BCI     1.2  JVM-com.interf   SELW                                                                                     More...  Parameters or command                                                           ===>                                                                            F3=Exit   F5=Refresh       F7=Find      F10=Restart statistics                  F11=Display elapsed data   F12=Cancel   F23=More options   F24=More keys



Please notice the TOOLSHED2 jobs. They need to be active and not stopped with the status MSGW.



If they are not running, then you need to ensure that they should run at the next restart of the IFORMNG2/IFORMNG2 subsystem. You need to verify the settings on the IFORMNG2/IFORMNG2 command/menu. You will see these options:



IFORMNG2                InterForm NG2 Main Menu                                                                                                             Select one of the following:                         System . . . :  PMK250                                                        User . . . . :  KSE         Administration                                    Version  . . :  3.4.1         1. Work with monitored output queues                                          2. Work with XML definitions                                                                                                                               10. Start IFORMNG2 subsystem                                                  11. End IFORMNG2 subsystem                                                    12. Work with IFORMNG2 subsystem                                                                                                                            16. Save spooled file to stream file                                          31. Display print service log                                                 51. Adjust CPI - *AFPDS configuration                                         91. License                                                                   92. NG2 installation and configuration                                                                                                                  Selection or command                                                          ===>                                                                                                                                                        F3=Exit   F4=Prompt   F9=Retrieve   F12=Cancel                                F13=Information Assistant  F16=System main menu



Now select option 92. NG2 installation and configuration and then you should seem something like below:



Configure IFORMNG2 Startup (NG2SETUP)                                                                                                        Type choices, press Enter.                                                                                                                                        IBM I Queue Monitor  . . . . . . > *ACTIVE       *ACTIVE, *INACTIVE, *SAME       NG2-Server (Output generator)  . > *ACTIVE       *ACTIVE, *INACTIVE, *SAME       CommandLine to NG2 . . . . . . . > *ACTIVE       *ACTIVE, *INACTIVE, *SAME       QIBM_QSH_CMD_OUTPUT - *JOB . . . > NONE                                                                                                                                                                                                            JAVA_HOME Blank=System default   > '/QOpenSys/QIBM/ProdData/JavaVM/jdk80/64bit'                                                                                                                                                                                                                                                     JVM_MEMORY . . . . . . . . . . . > '-Xms2g -Xmn1g -Xmx3g'                        Use jt400Native.jar  . . . . . . > '-Dloader.path=/QIBM/ProdData/OS400/jt400/li  b/jt400Native.jar'                                                                                                                                                                                                                                                                                                                                                                                         More...   F3=Exit   F4=Prompt   F5=Refresh   F12=Cancel   F13=How to use this display      F24=More keys



The important setting is, that the option CommandLine to NG2 is *ACTIVE. If it is not, then you need to change the value to *ACTIVE and then restart the IFORMNG2/IFORMNG2 subsystem e.g. via option 11 and 10 on the menu above.



Command call: Dump the variables :

This section shows a way to dump the variables, that are set via a command call on the IBM i platform.

In this case this workflow has been setup:

As you can see the workflow only has one component, Debug headers apart from the input component.

The debug header component simply dumps all workflow variables to the system log.

In order to trigger the workflow above you can use a CL program like the one below:

PGM

            DSPJOBLOG  OUTPUT(*PRINT)

            IFORMNG2/NG2CMD COMMAND(DUMP) FILE(QPJOBLOG) +

                         SPLNBR(*LAST) TOSTMF('/iformng2/tofile') +

                         FILE1('/apf3812home/view/kse.pdf') +

                         FILE2('F2') FILE3(F3) FILE4(F4) FILE5(F5) +

                         FILE6(F6) FILE7(F7) FILE8(F8) FILE9(F9) +

                         FILE10(F10) PARM1('P01') PARM2('P02') +

                         PARM3('P03') PARM4('P04') PARM5('P05') +

                         PARM6('P06') PARM7('P07') PARM8('P08') +

                         PARM9('P09') PARM10('P10') PARM11('P11') +

                         PARM12('P12') PARM13('P13') PARM14('P14') +

                         PARM15('P15') PARM16('P16') PARM17('P17') +

                         PARM18('P18') PARM19('P19') PARM20('P20') +

                         PARM21('P21') PARM22('P22') PARM23('P23') +

                         PARM24('P24') PARM25('P25') PARM26('P26') +

                         PARM27('P27') PARM28('P28') PARM29('P29') +

                         PARM30('P30') ATTACHNAME(ATTACHMENTNAME) +

                         COPIES(127) MAILSERVER(GMAIL) +

                         SUBJECT('test subject') +

                         MAILFROM(EMAILFROM) MAILTO(EMAILTO) +

                         MAILCC(EMAILCC) MAILBCC(EMAILBCC) +

                         MAILTEMPL(EMAILTEMPLATE) PRINTER(PRINTER) +

                         OUTFILE(FILENAME) DIR(DIRECTORY) +

                         TEMPLATE(TEMPLATE.IFT) INFILE(INPUTFILE) +

                         CONFLICT(CONFLICT) LOGINFO(LOGINFOKEY)

ENDPGM

The program creates a joblog spooled file and calls the DUMP workflow as shown above.

After you have run this command, you can now see each of the variables and the values in the system log.

You can also see the mapping between the paramters of the NG2CMD command the workflow variables in this section.

Command call: Email :

This section shows a way to Email via a command call on the IBM i platform.

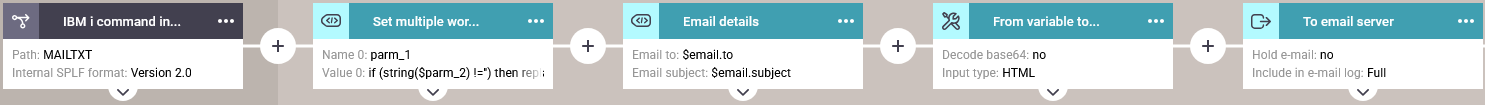

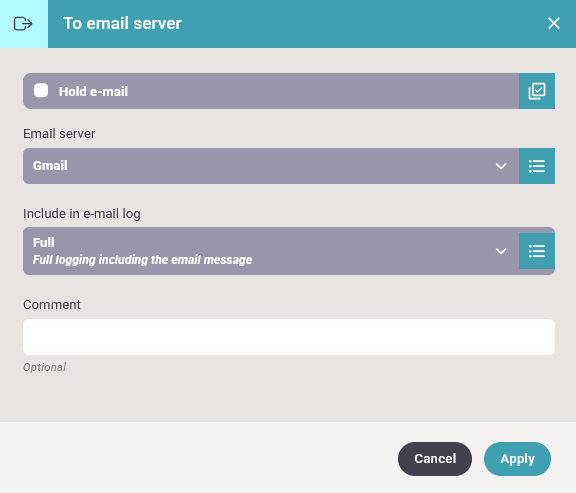

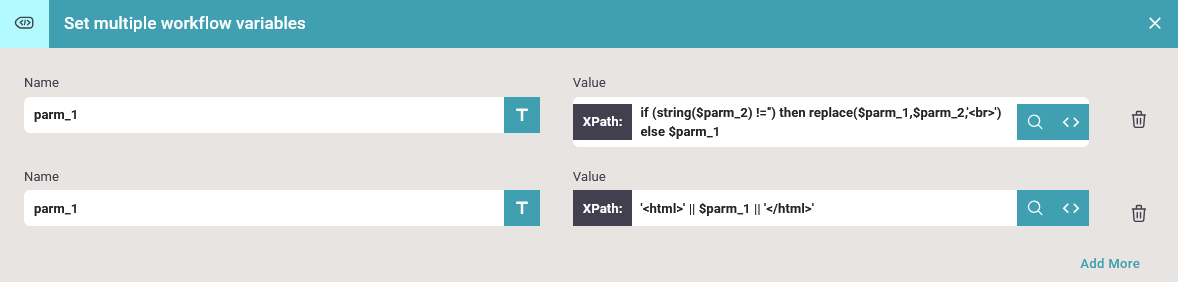

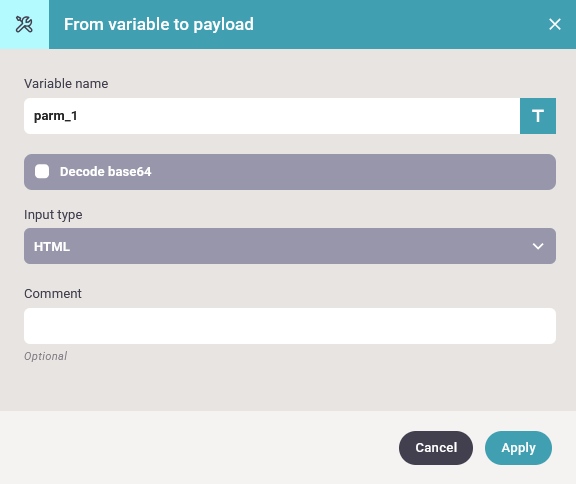

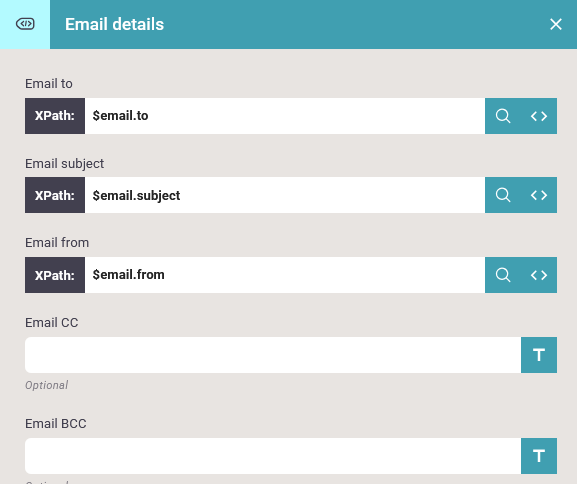

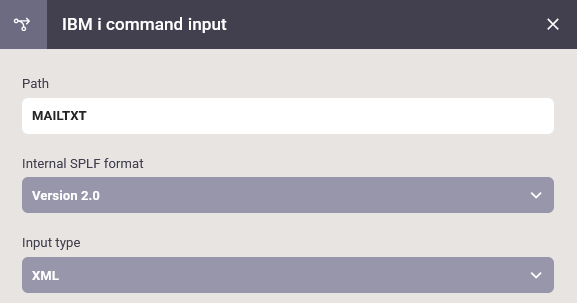

In this case this workflow has been setup:

Overview:

The workflow above can be called with this CL program:

PGM

            DSPJOBLOG  OUTPUT(*PRINT)

            IFORMNG2/NG2CMD COMMAND(EMAIL) FILE(QPJOBLOG) +

                         SPLNBR(*LAST) ATTACHNAME(JOBLOG.PDF) +

                         MAILSERVER(GMAIL) SUBJECT('This is my +

                         email') +

                         MAILFROM('customremail@gmail.com') +

                         MAILTO('customremail@gmail.com')

ENDPGM

Some of the email settings in the workflow are fixed and some are variable and specified on the command. You can setup your own rules. In this example an input spooled file is merged with the fixed template, generic.ift and is sent with a variable subject and variable attachment name to and from email addresses, that are specified on the command.

Command call: Email with extra attachment :

This section shows a way to Email with an extra attachment via a command call on the IBM i platform.

The extra attachment can be defined via the FILE1-FILE10 parameters on the NG2CMD command. These attachments are as default named file_1 to file_10, but can be renamed with the rename attachment component as shown below.

In this case this workflow has been setup:

Overview:

The workflow above can be called with this CL program:

PGM

            DSPJOBLOG  OUTPUT(*PRINT)

            IFORMNG2/NG2CMD COMMAND(EMAIL) FILE(QPJOBLOG) +

                         SPLNBR(*LAST) +

                         FILE1('/apf3812home/view/kse.pdf') +

                         ATTACHNAME(JOBLOG.PDF) MAILSERVER(GMAIL) +

                         SUBJECT('This is my email') +

                         MAILFROM('customremail@gmail.com') +

                         MAILTO('customremail@gmail.com')

ENDPGM

Some of the email settings in the workflow are fixed and some are variable and specified on the command. You can setup your own rules. In this example an input spooled file is merged with the fixed template, generic.ift and is sent with a variable subject and variable attachment name to and from email addresses, that are specified on the command.

Command call: Create PDF from payload:

This section shows a way to create a PDF file from the payload of a workflow via a command call on the IBM i platform.

In this case this workflow has been setup:

Overview:

The workflow above expects an input spooled file and it will merge the input spooled file with the variable template, that is specified on the command. The resulting PDF data stream will be stored in the payload of the workflow and returned to the calling command.

The workflow above can be called by this CL program:

PGM

            DSPJOBLOG  OUTPUT(*PRINT)

            IFORMNG2/NG2CMD COMMAND(PDF) FILE(QPJOBLOG) +

                         SPLNBR(*LAST) +

                         TOSTMF('/iformng2/result.pdf') +

                         TEMPLATE('generic.ift')

ENDPGM

This program generates a joblog as a spooled file and calls the NG2CMD command in order to merge it with the template, generic.ift. The resulting PDF file is stored in the path, /iformng2/result.pdf.

Command call: Create PDF in workflow :

This section shows a way to create a PDF file in a workflow via a command call on the IBM i platform.

This workflow has been setup:

Overview:

The workflow above can be called by a CL program that looks like below:

PGM

            DSPJOBLOG  OUTPUT(*PRINT)

            IFORMNG2/NG2CMD COMMAND(PDF2) FILE(QPJOBLOG) +

                         SPLNBR(*LAST) OUTFILE(WORKFLOW.PDF) +

                         DIR('/IFORMNG2') TEMPLATE('generic.ift') +

                         CONFLICT('Overwrite')

ENDPGM

In the program the joblog of the current job is converted into a spooled file and this is merged into a PDF file. All is setup on the command, so that it will create the PDF file: /IFORMNG2/WORKFLOW.PDF based on a merge with the template, generic.ift. If there already is a file with this name in the output directory, then the original file will be overwritten.

Command call: Merge XML into PDF:

The example below shows how you can build an NG2CMD command, that selects an input XML file, a template to merge with and the path and file name of an output PDF file.

The relationship between the parameters of the command and the workflow variables are listed in the section, Parameters of the AS400 command.

First we need to build the workflow (based on the AS400 command input):

The first element of the workflow is the input selection, which is shown below:

In the image above we have chosen the identification (path) to be PDF_XML. This is the important link between the CL command and the workflow. We set the input type to XML as we expect the command to refer to an XML file.

The next element in the workflow loads the selected XML file from the file system (IFS) into the payload of the workflow:

This is the file to payload workflow component. In this example we refer to the workflow variable, interform.input.file.absolute.path. This variable relates to the parameter, INFILE of the NG2CMD command.

The final workflow component creates the PDF file. For that we use the workflow component, Create PDF file. Here we use the component with these parameters:

In this component we refer to these variables:

Template

This is the template (or design), that we want to merge the input XML file with. Here we have chosen that the template (the design) is to be selected on the command, NG2CMD. The variable, com.interform400.xml.Template contains the value of the parameter, TEMPLATE of the NG2CMD command.

Output directory

This is the directory in which we want to store the PDF file, that is created by the merge between the input XML file and the referenced template. Here we refer to the variable, $interform.plugin.archiver.folderName, which contains the value of the parameter, DIR in the NG2CMD command.

Output filename

This is the name of the PDF file (without the path but including the extension), that we want to create. This is here the variable, interform.plugin.archiver.fileName, which contains the value of the parameter, OUTFILE in the NG2CMD command.

Filename conflict resolution

Here we have specified, that the output PDF file is to be overwritten, if it already exists, but this can also be set via an XPath expression.

With the setup above we can now call this workflow in InterFormNG2 with the command, IFORMNG2/NG2CMD.

This is an example where this command is called in a CL program:

/* Create the PDF file via the command.                                 */

/* The command refers to an input XML file, that is to be merged with a */

/* template.                                                            */

PGM

             IFORMNG2/NG2CMD COMMAND(PDF_XML) OUTFILE(outfile.pdf) +

                          DIR('/apf3812home/work') +

                          TEMPLATE('Demo_XML.ift') +

                          INFILE('/apf3812home/work/Intro_demo.xml')

ENDPGM

The command has these parameters:

Command

This is the link to the workflow. This must match the path parameter of the AS400 command input component above.

Outfile

The name of the PDF file, that we want to create.

Dir

The directory in which the PDF file is to be created.

Template

The template (design) that the input XML file should be merged with.

Infile

The NG2CPDFEML command :

This section covers the IFORMNG2/NG2CPDFEML command on the IBM i platform. In order to run this command or the IFORMNG2/NG2CMD command you first need to ensure, that the prerequisites are met.

The NG2CMD command is the most generic command, where this command, NG2CPDFEML is more limited and has been prepared to generate an email with an attached PDF file.

The command runs its function via a referenced workflow, that you select via the NG2 endpoint (COMMAND) field. The NG2 Endpoint value must the the path of a

workflow that is specified for AS400 Command input.

The NG2CPDFEML command looks like the screens below.

The parameters are explained here.

Parameters of the AS400 command :

​This section describes all entry parameters of both of the InterFormNG2 commands for the IBM i platform: The NG2CMD and NG2CPDFEML commands.

The list below refers to the sequence of the parameters of the command, NG2CMD. The NG2CPDFEML command contains only a subset of these parameters.

Please notice, that all values and parameters are case sensitive in InterFormNG2.

Identification of the workflow (required)

General parameters (Optional)

Optional identification and attributes of a spooled file

A lot of spooled file attributes are also retrieved, and they can used in the workflow. They are listed here.

Optional Output file

Optional Input parameters

Optional Email parameters

Optional Print parameters

Optional File input/output parameters
